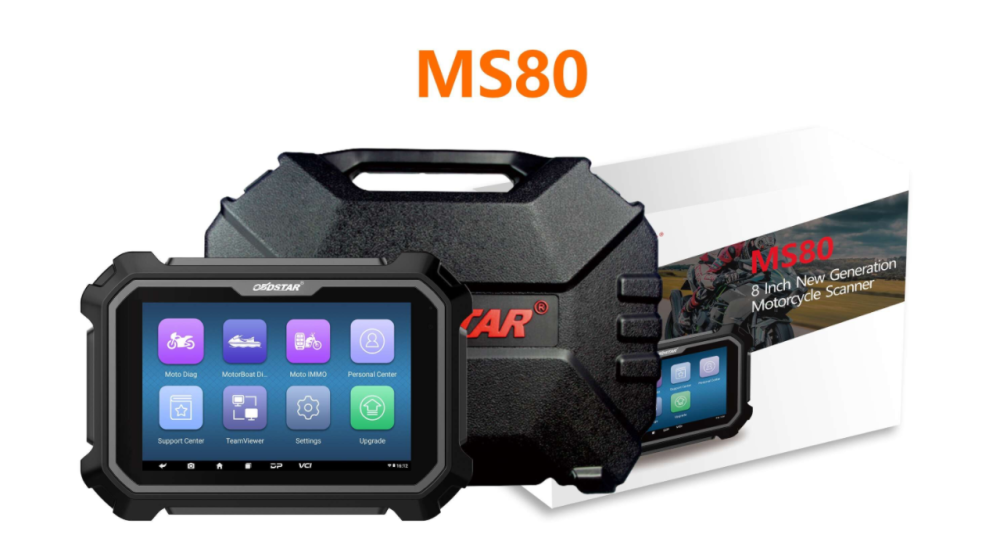

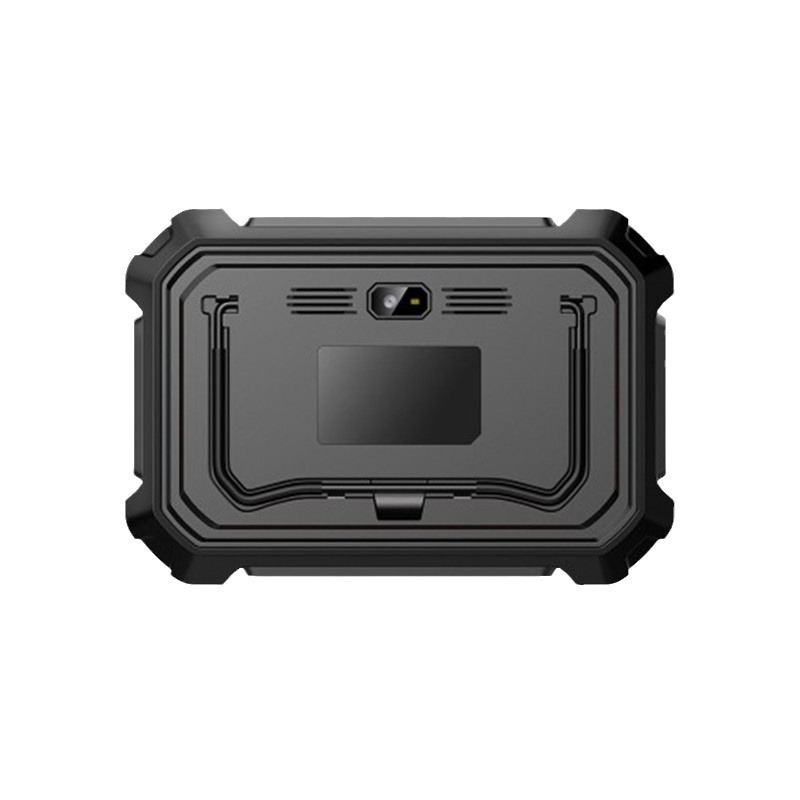

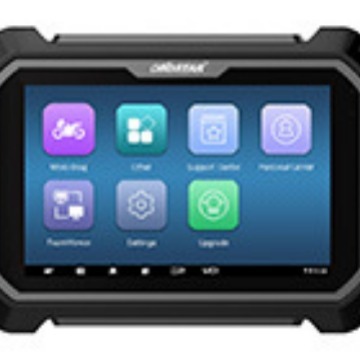

OBDSTAR MS80 8 Inch New Generation of Intelligent Motorcycle Diagnostic Tool
MS80 has professional-level intelligent diagnosis, providing an unprecedented intelligent diagnosis and maintenance experience-the first fault guidance, technical bulletin, data flow assistance, diag socket, and other functions to help you diagnose accurately and efficiently; exclusive interactive circuit diagram and electrical query system, easy troubleshooting Failure, so you have no worries about the car diagnosis!
1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support the fault diagnosis of most of the world's luxury locomotives and tens of thousands of models.
Advantage function:
1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Exclusive interactive circuit diagram and electrical description query function, so that you can have a worry-free diagnosis;
3. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
4. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.
Comparison Table for OBDSTAR MS80 and MS50:
Motorcycle/snowmobile/ATV/UTV diagnostic function support car series:
Asia:
For Honda、for Hondamontesa、for Kawasaki、for Kymco、for Suzuki、for SYM、for Yamaha
Europe:
For Aprilia、for Benelli、for BMW、for Derbi、for Ducati、for Gasgas、for Gilera、for KTM、for Malaguti、for Moto Guzzi、for MV Agusta、for Peugeot、for Piaggio、for Triumph、for Vespa
Americas:
For BRP、for Harley Davison、for Indian、for Victory
Motorcycle key programming support car series:
For Gilera、for Harley Davison、foor Peugeot、for Piaggio、for Triumph、for Vespa
PWC support car series:
For BRP、for Honda、for Kawsaki、for Yamaha
Product Parameters
Operation System: Android 5.1.1
CPU: Exynos4418 Dual Core
ARM Cortex A9
Battery: 3700mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 32GB
LCD：8.0 inch
LCD resolution: 1280*800
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature: -10℃～55℃（14℉～131℉）
Storage temperature: -20℃～70℃（-4℉～158℉）
Weight: 1kg（Main Unit)
Dimension: 254mm*174*mm*35mm

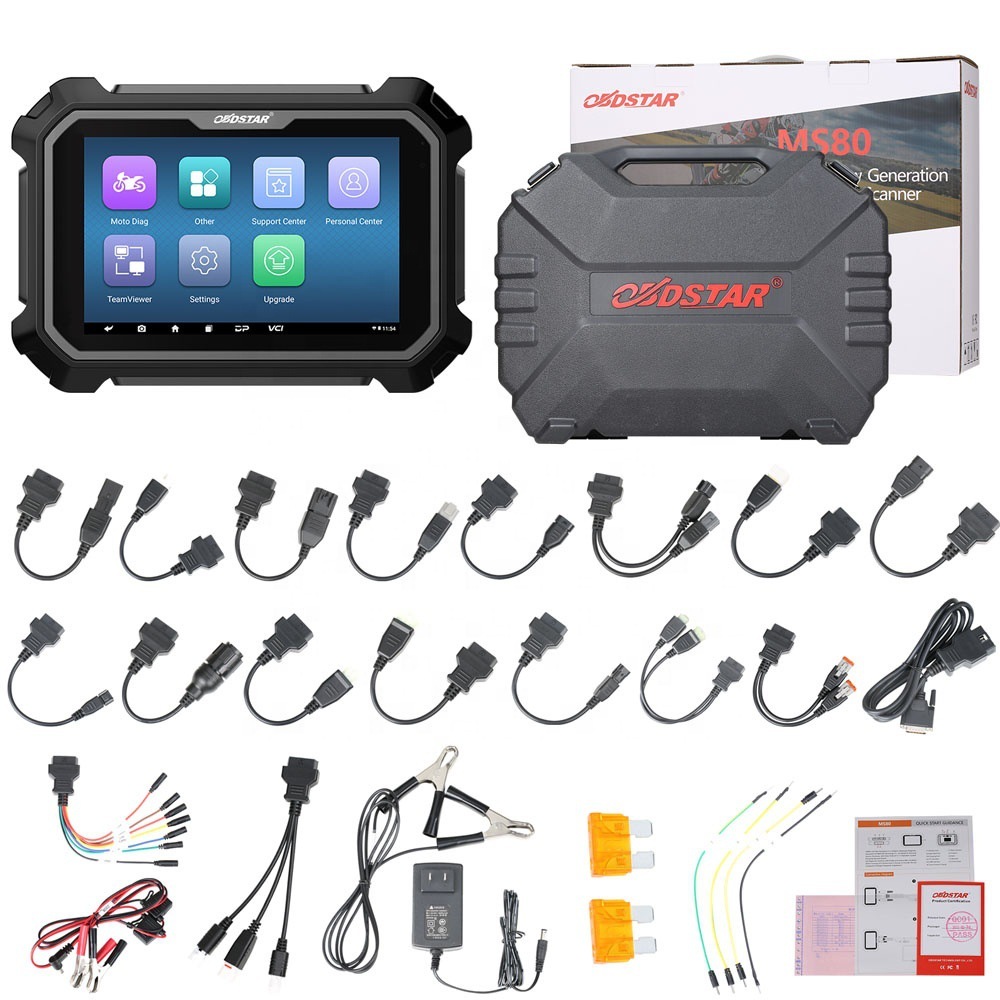

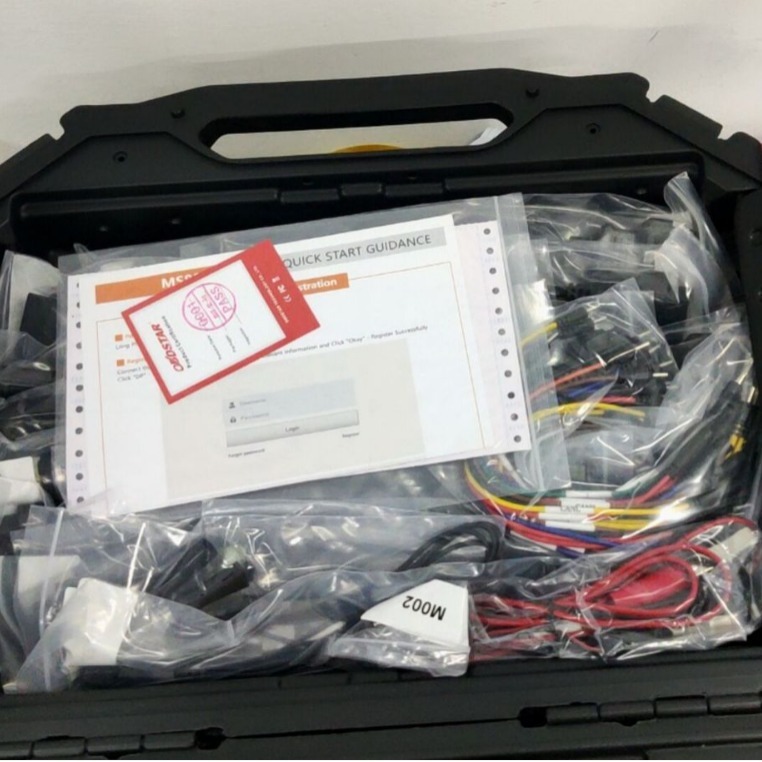

Package includes:
1pc x M001 Main Cable
1pc x M002 Power Cable
1pc x M002A GND
1pc x M003A Multi functional jumper
1pc x M004 For APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005 For KAWASAKI
1pc x M006 For KAWASAKI
1pc x M012 For SUZUKI
1pc x M015A For HONDA/HONDA MONTESA
1pc x M018 For YAMAHA
1pc x M019 For KTM
1pc x M021 For AEON/BENELLI/BENELLI DSK
1pc x M026 For SYM
1pc x M027 For KYMCO/KAWASAKI
1pc x M034 For HARLEY-DAVIDSON
1pc x M037 For DUCATI
1pcx M040 For BMW
1pc x M041 For EURO V
1pc x M042 For INDIAN/VICTORY
1pcx M043 For BRP
1pc x P001 IMMO KIT(Optional)
1pc x 12V2A CHARGER
